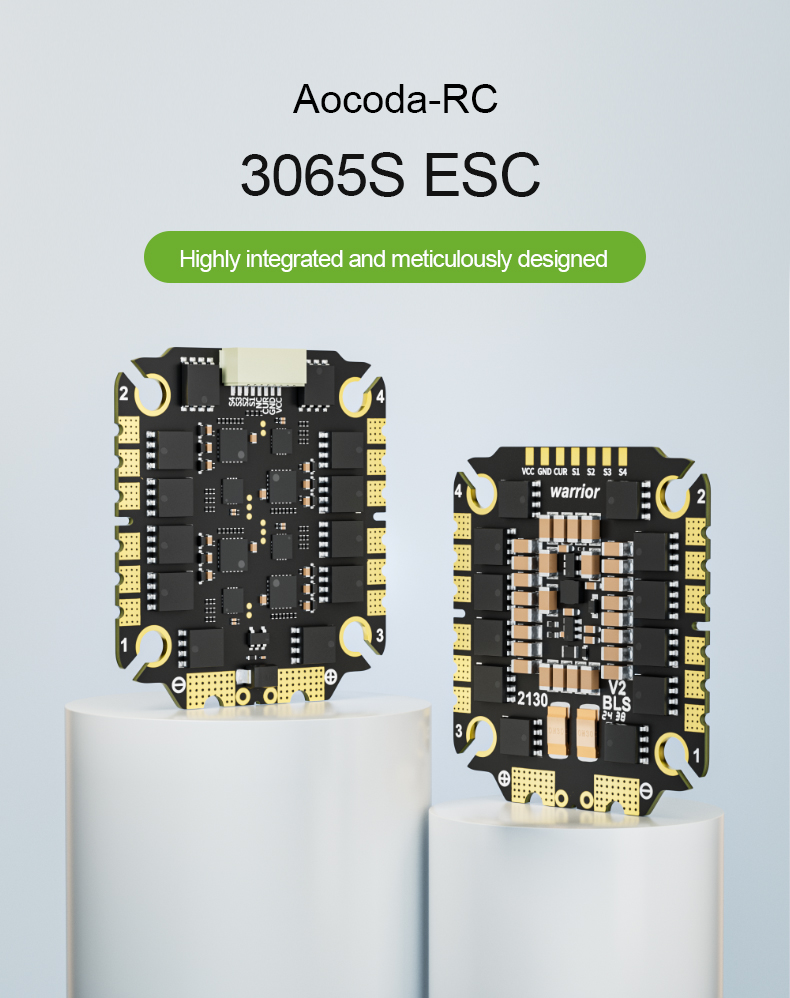

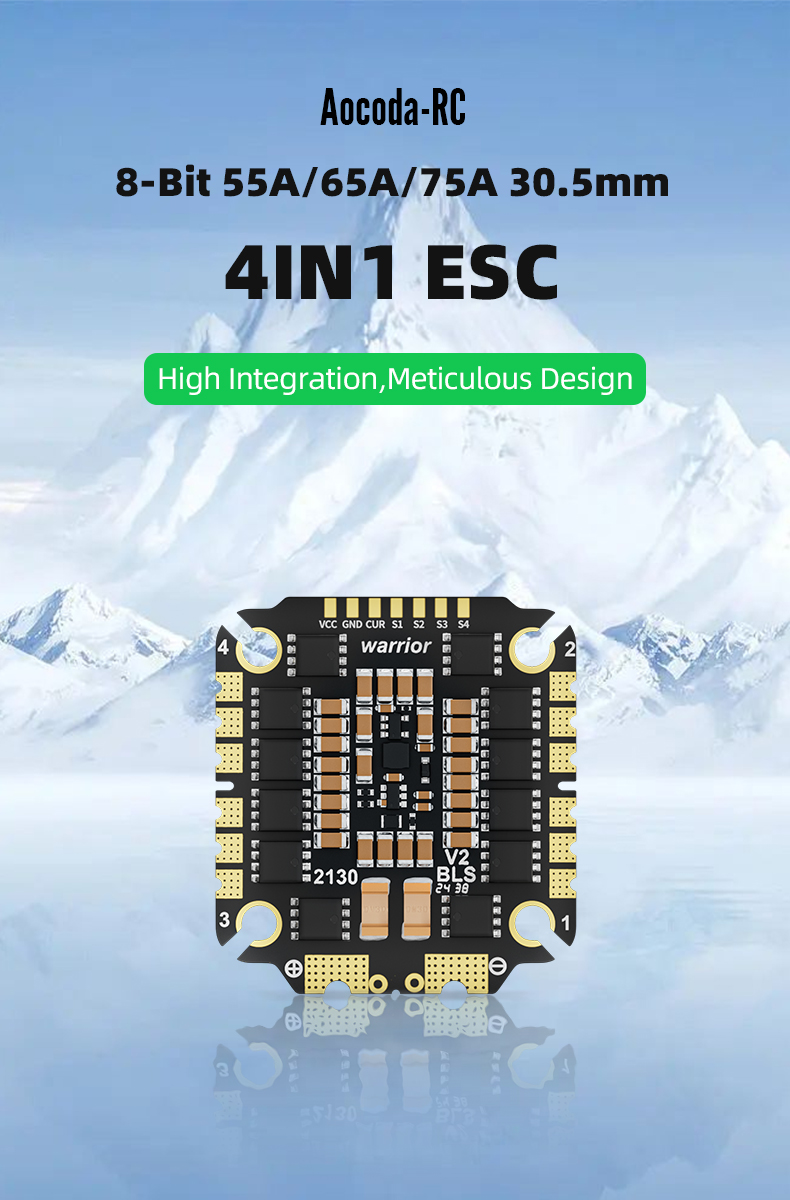

Aocoda-RC Warrior 3055S/3065S/3075S 55A/65A/75A 4-IN-1 ESC

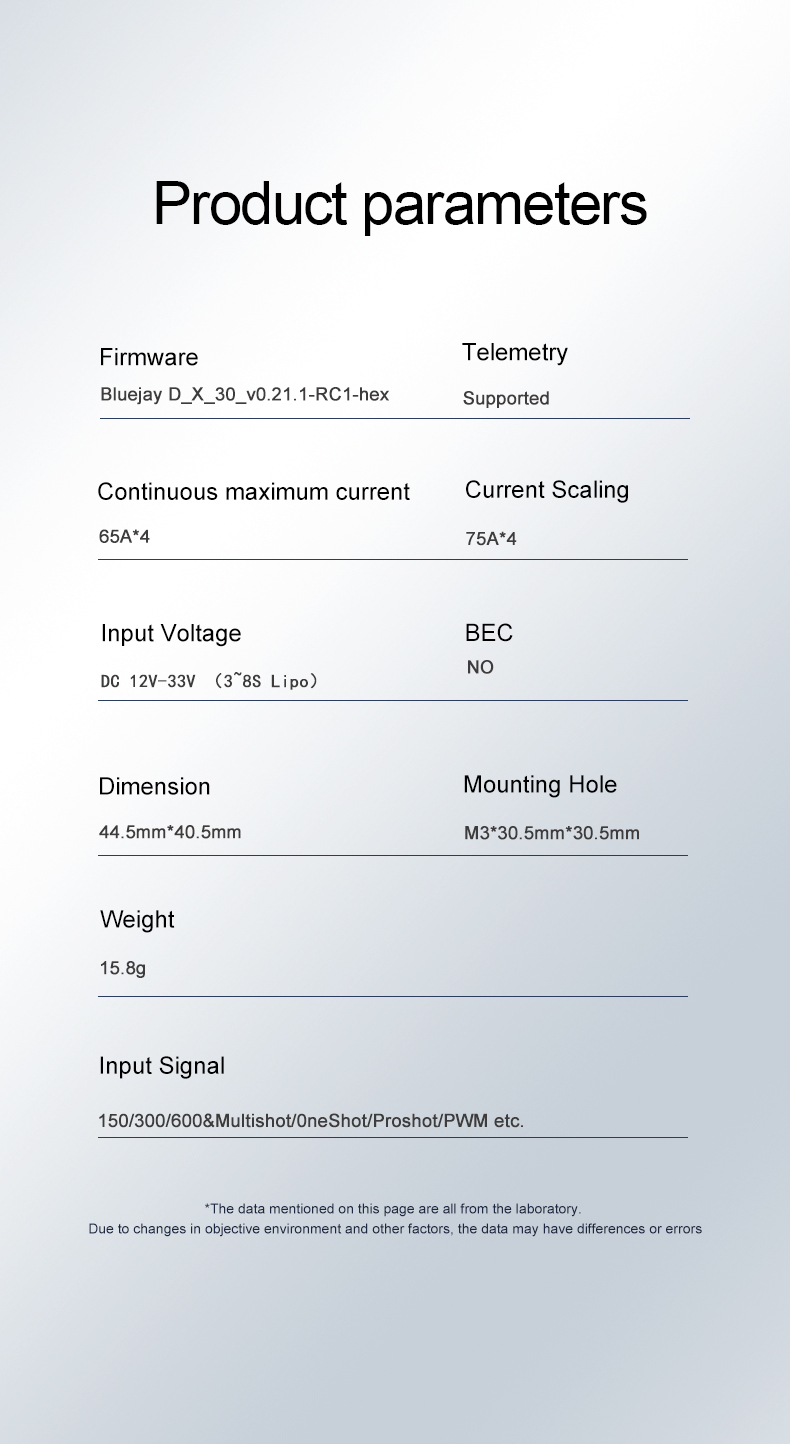

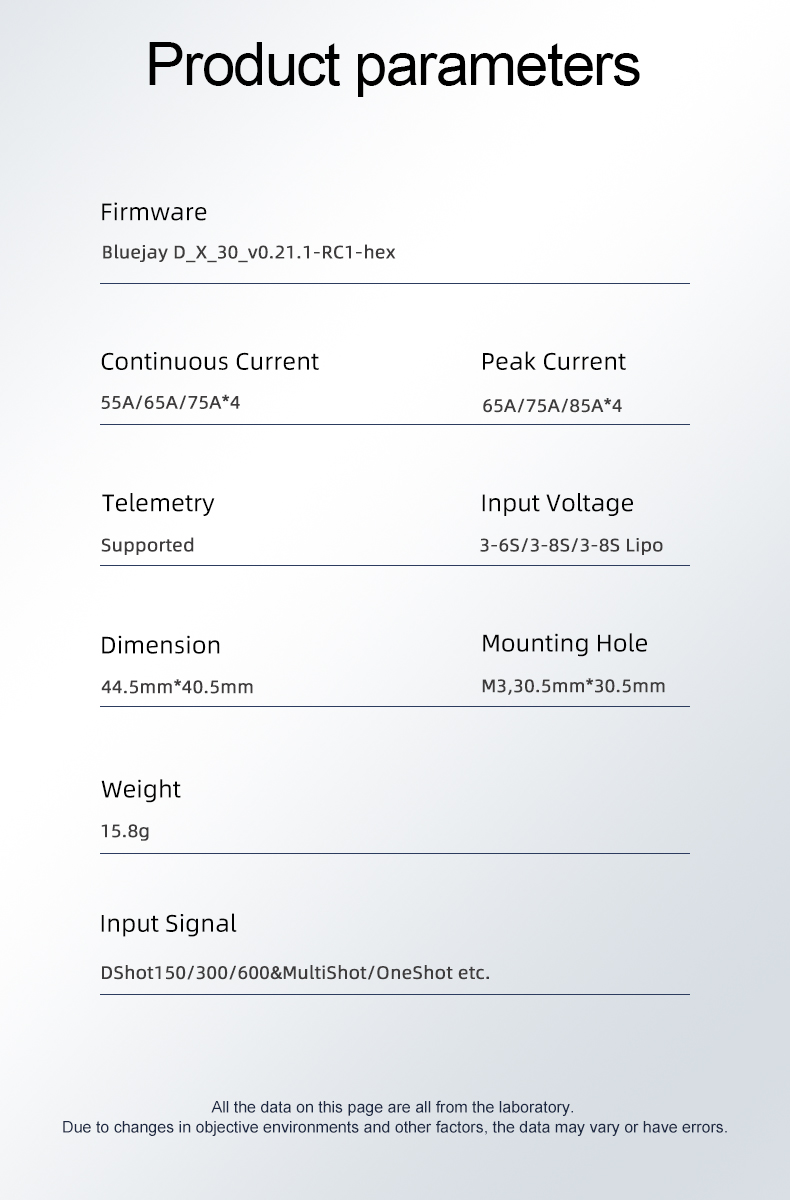

Specifications

• MCU:
• PWM frequency:
• Continuous Current: 55A/65A/75A*4
• Peak Current: 65A/75A/85A*4
• Peak Power Rating (kW):
• Continuous Rating Duration (s):
• Burst Rating Time (s):
• Input Voltage: 3~6S/3~8S/3~8S Lipo
• BEC output: No
• Temperature: No
• Telemetry:
• Current Scaling:
• Working Temperature:
• Working Humidity:
• Storage Temperature:

Features

• Firmware: Bluejay D_X_30_v0.21.1-RC1-hex
• ESC Programming: Supported
• Web Parameter Adjustment:
• DEO: DShot150/300/600&MultiShot/OneShot etc.
• Timing:
• Motor Rotation:
• Driving Frequency Setting:

Physical

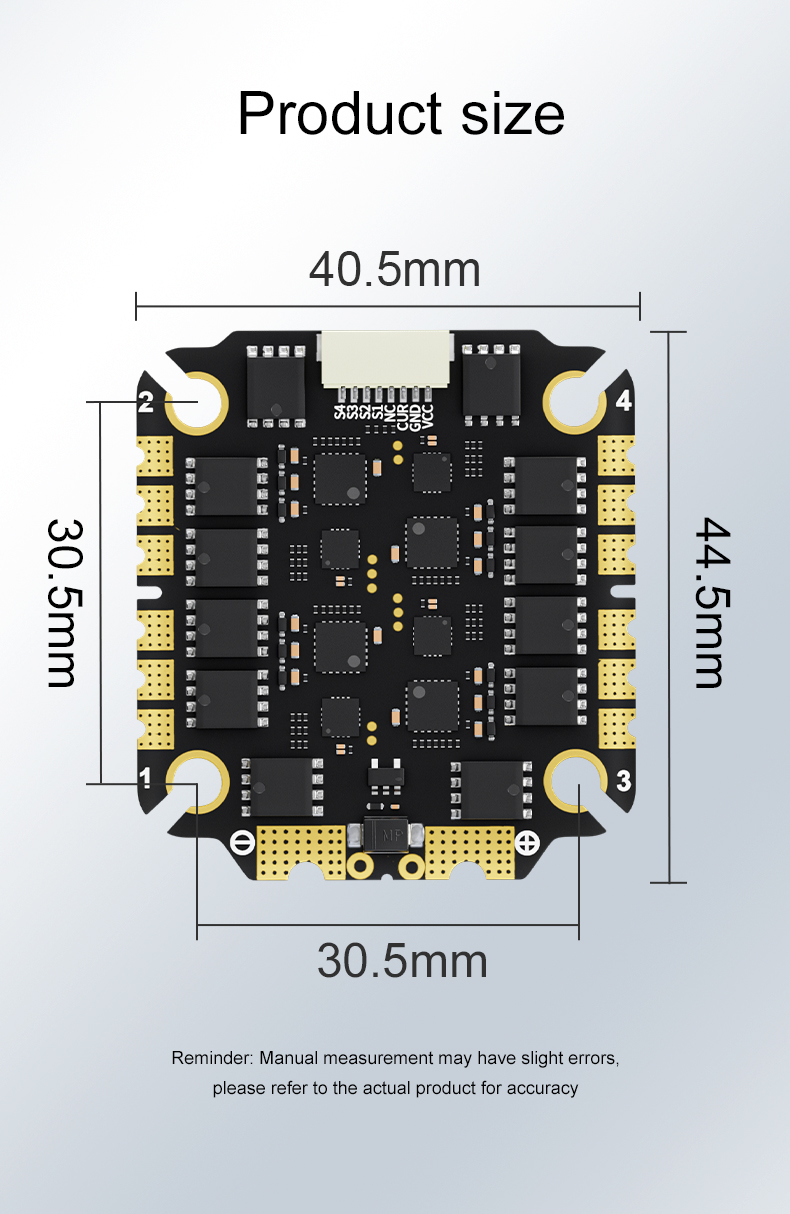

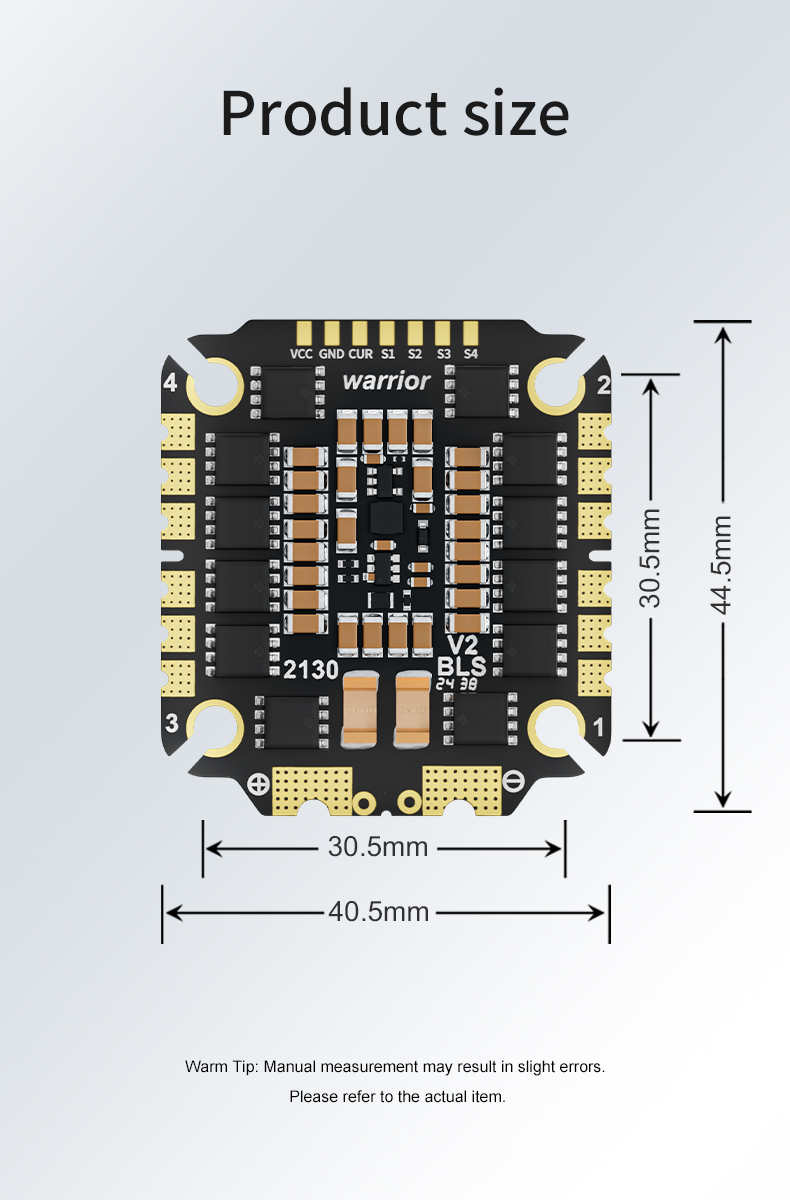

• Dimensions: 44.5mm*40.5mm
• Mounting Hole: M3, 30.5mm*30.5mm
• Weight: 15.8g

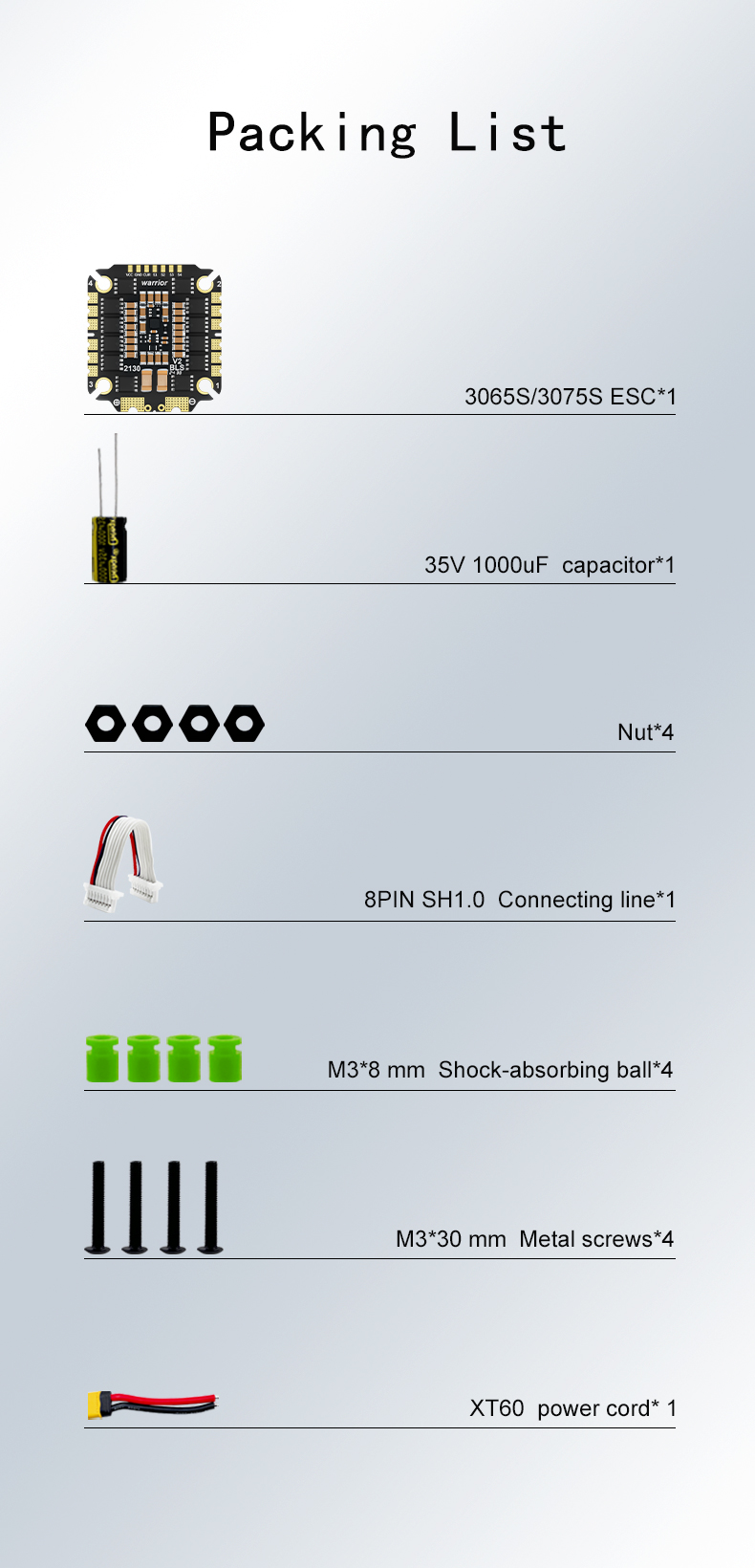

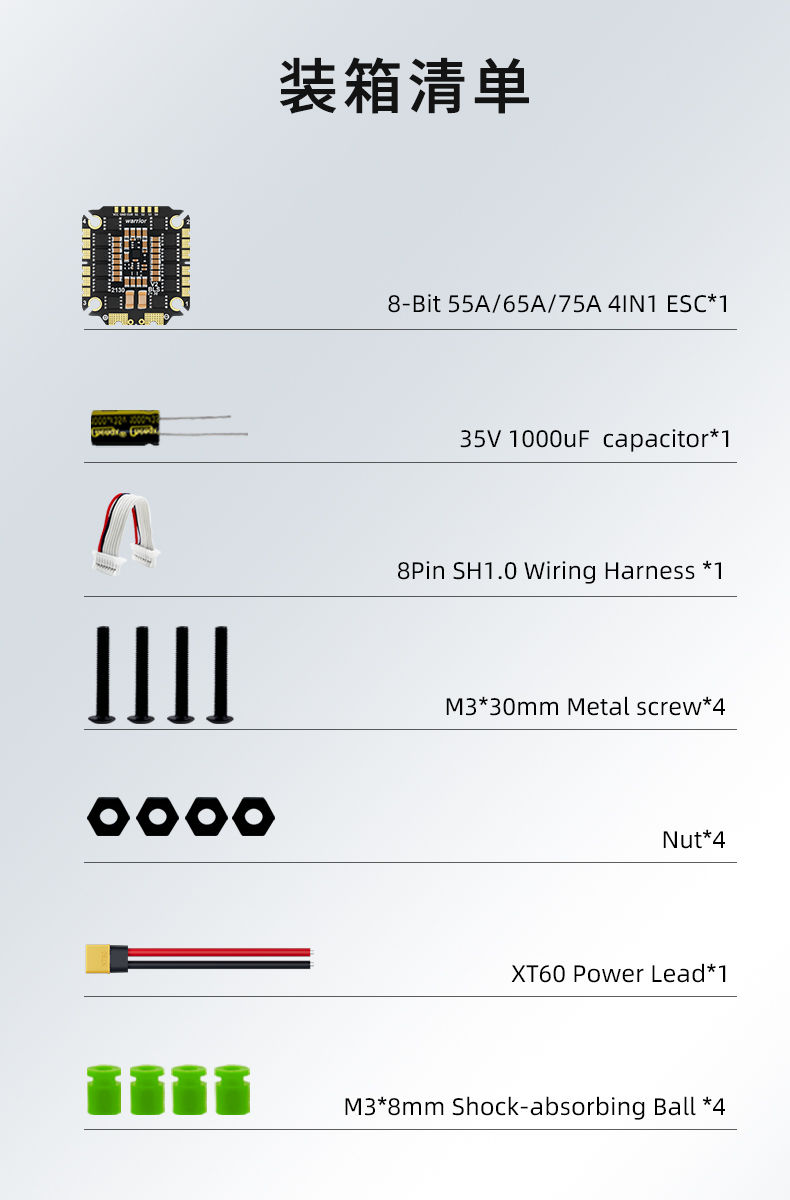

Including

• 8-Bit 55A/65A/75A 4IN1 ESC*1
• 35V 1000uF capacitor*1
• 8Pin SH1.0 Wiring Harness*1
• M3*30mm Metal screw*4
• Nut*4
• XT60 Power Lead*1
• M3*8mm Shock-absorbing Ball*4

Regarding technical issues

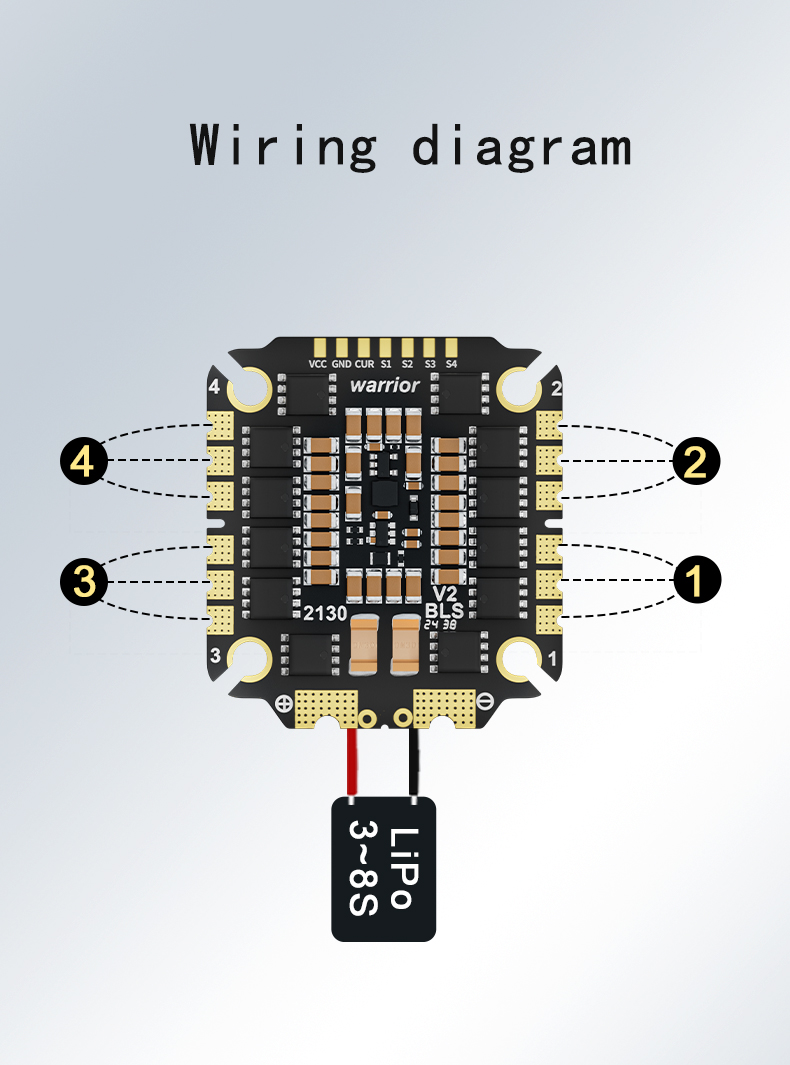

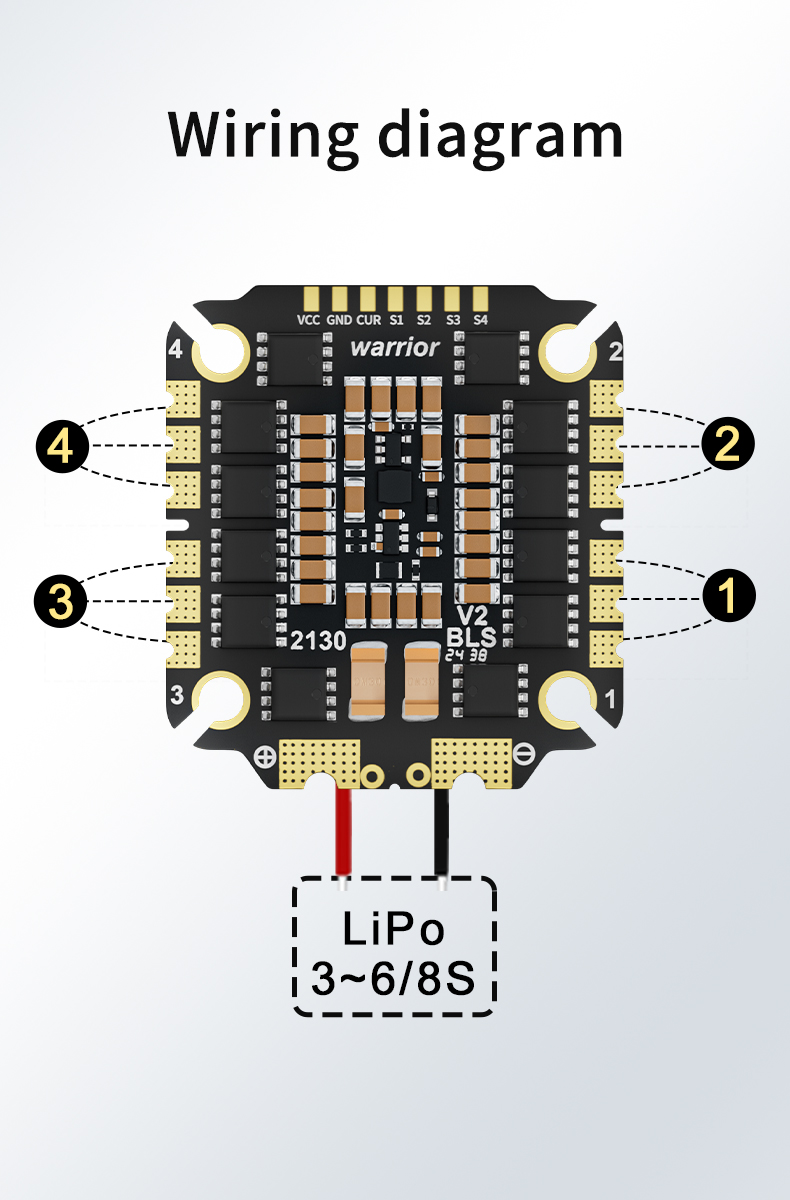

Product Manual (including Layout、Wiring diagram and Purchase channels)
