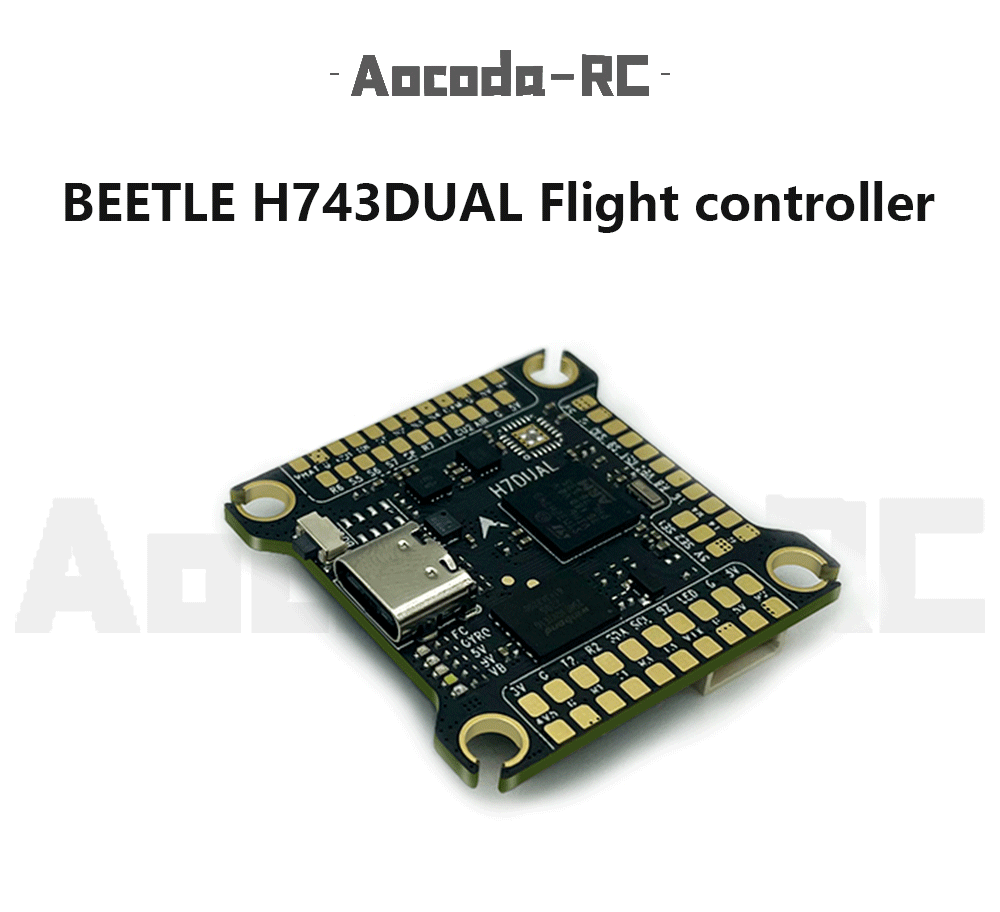

Aocoda-RC H743 flight controller MPU6000x1 BMI270x2 BMP280 BlackBox 1G for Racing Drone

H7DUAL-MPU6000x1 specification

FC  Specifcations
MCU: STM32H743VIH6
gyroscope: MPU6000/BMI270 X2(Optional)
barometer: BMP280,DPS310,MS5611 (Optional)
Black Box: 128MB
Motor output: 8CH motor output
Serial port: 5CH serial ports
input voltage: 12V-25.2V（3-6SLipo）
BEC: 5V/2. 5A,9V/3A

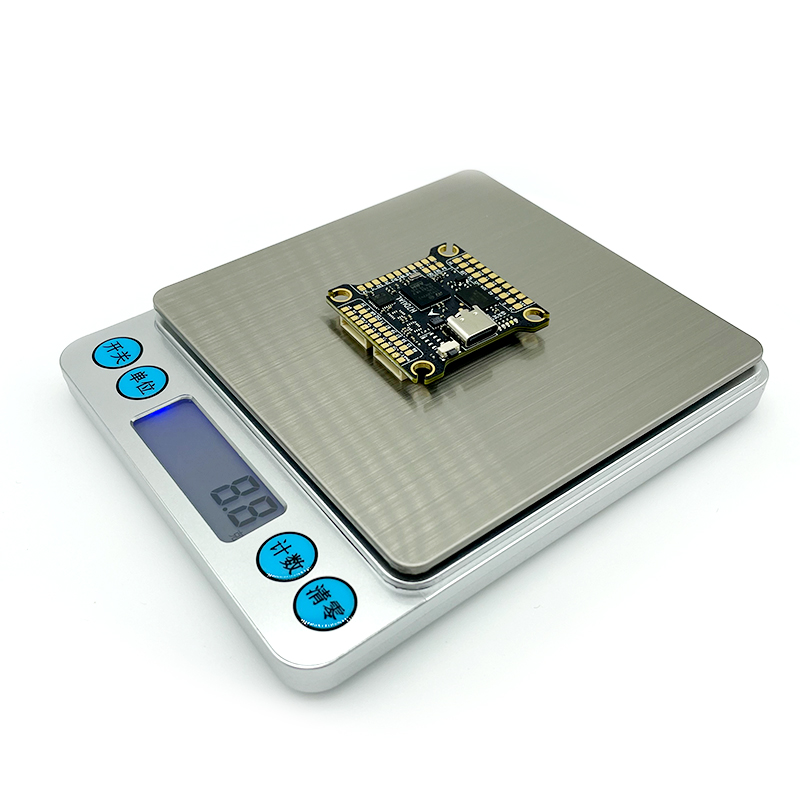

Weight：8.8g
Dimensions: 37mmx37mm
Installation hole spacing: 30.5mmx30. 5mm
Firmware name:Aocoda-RCH7DUAL

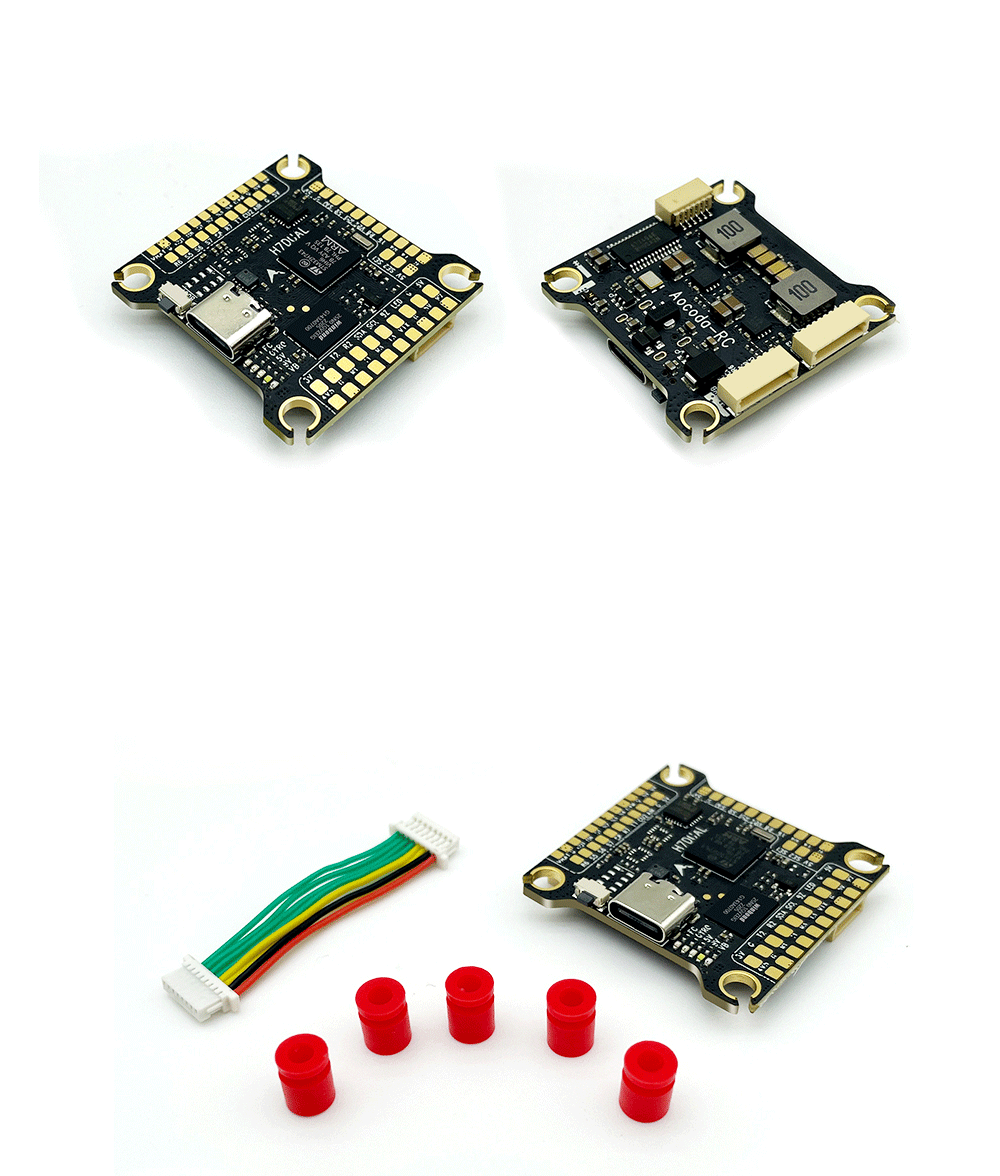

Accessory list

Aocoda-RC BEETLE H7DUAL  X1
8PIN SH1.0 Signal Wires  X2
M3*8 Shock absorbing ball  X4
