Aocoda-RC 2065 AM32 32Bit 65A 4-IN-1 ESC

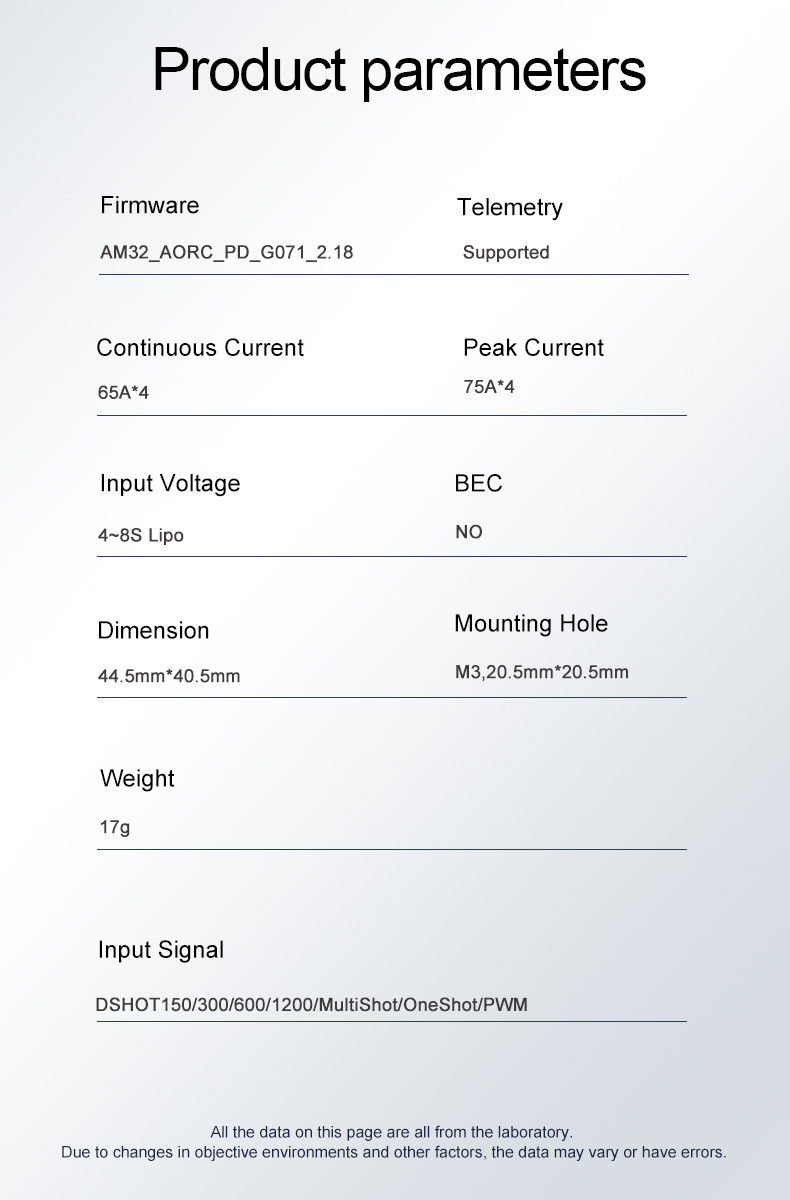

Specifications

• MCU: STM32G071, 64MHz
• PWM frequency: 24-48KHz
• Continuous Current: 65A*4
• Peak Current: 75A*4
• Input Voltage: DC 9V~40V (3~8S Lipo)
• Galvanometer: supported
• BEC output: No
• Temperature: No
• Telemetry: supported
• Current Scaling: 70
• Working Temperature: -20℃~+55℃
• Working Humidity: 20～95%
• Storage Temperature: -20℃~+70℃

Features

• Firmware: AM32_AORC_PD_G071_2.18
• ESC Programming: Supported
• Web Parameter Adjustment:
• Input Signal: DSHOT150/300/600/1200/MultiShotOneShot/PWM
• Motor Rotation:
• Driving Frequency Setting:

Physical

• Dimensions: 44.5mm*40.5mm
• Mounting Hole: M3, 20.5mm*20.5mm
• Weight: 17g

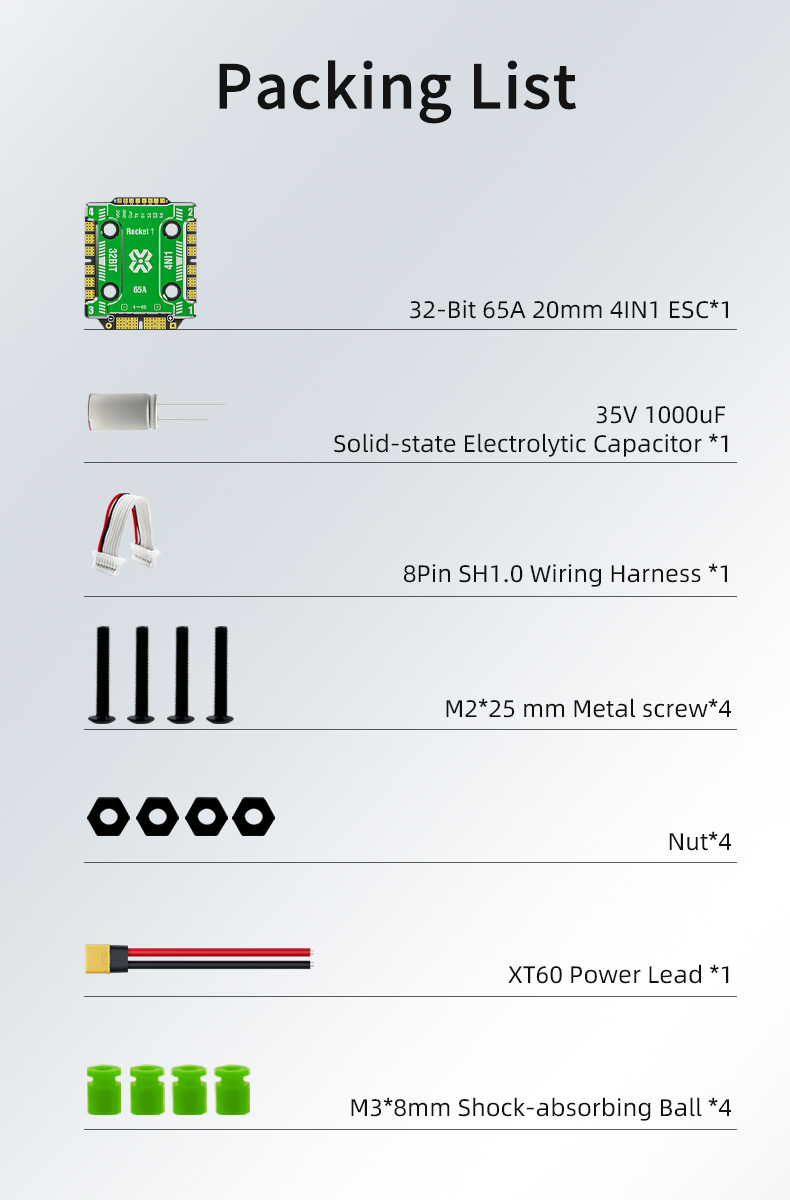

Including

• 32BIT 65A 20mm4IN1 ESC*1
• 35V 1000uF Solid-state Electrolytic Capacitor*1
• 8Pin SH1.0 Wiring Harness *1
• M2*25mm Meta screw*4
• Nut*4
• XT60 Power Lead *1
• M3*8mm Shock-absorbing Ball *4

Regarding technical issues

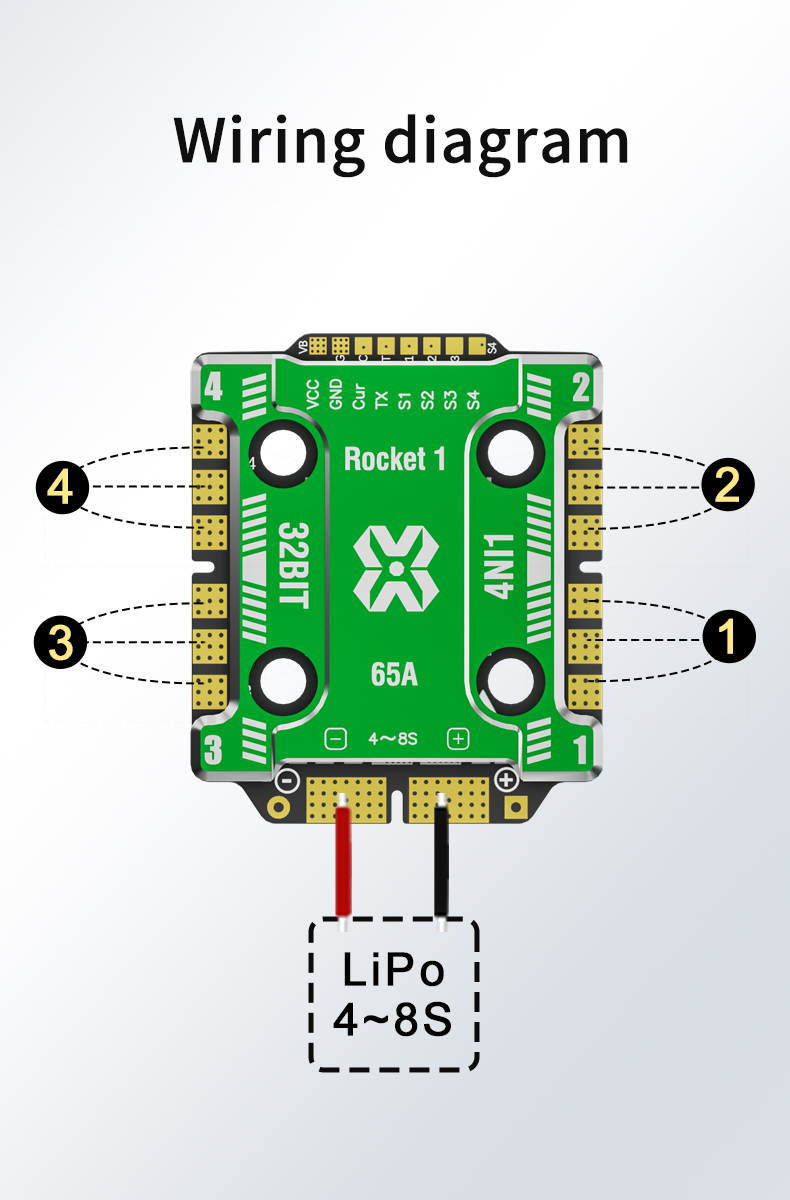

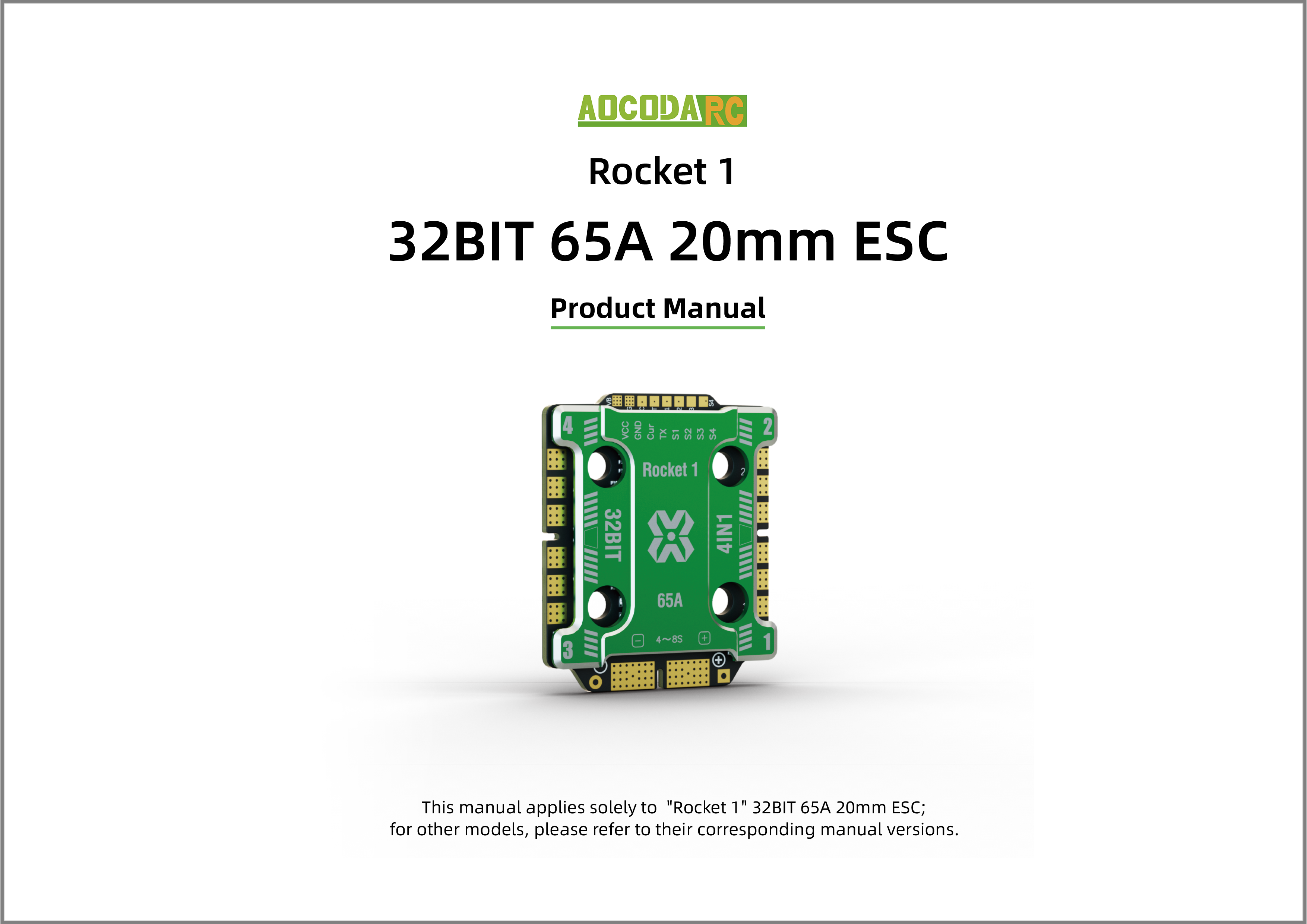

Product Manual (including Layout、Wiring diagram and Purchase channels)
